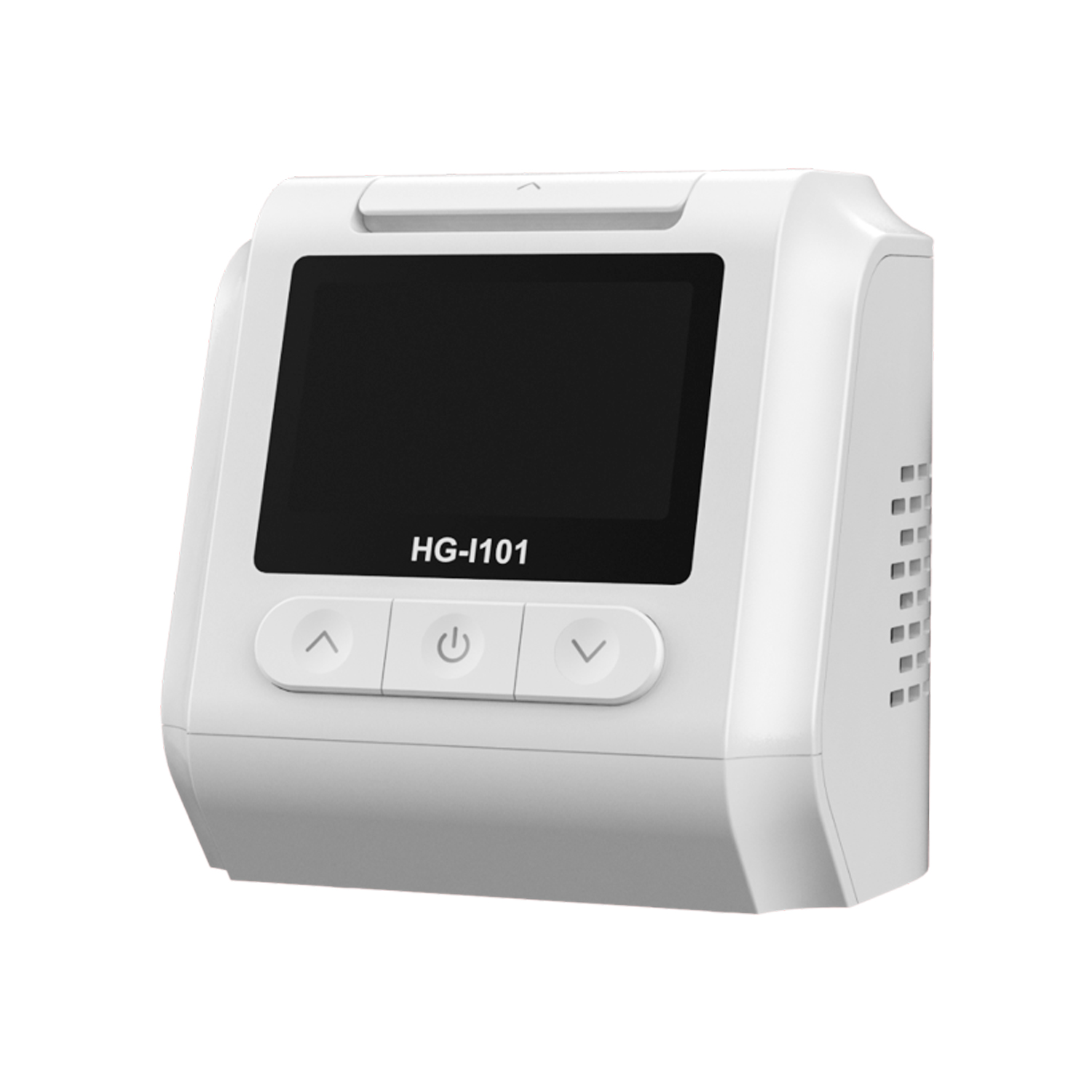

HG-I101 Gene Scoper

Catalog Number

Introduction

The Gene Scoper is based on constant chain substitu-tion and polymerase reaction for synthetic amplifica-tion of specific genes, using the characteristic that thetime elapsed when the fluorescence signal in thereaction tube reaches a set threshold correlates withthe starting copy number of that template,measuringthe fluorescence signal through the fluorescencedetection system, and analyzes the gene to be tested inthe sample.

Features

Simple Operation

Fast Detection

High Sensitivity

Result in 25 minutes

positive results in as little as 8 minutes

Parameters

Functional features

Qualitative testing

Display screens

LCD display

Dimensions

L95× w95× H105mm

Weight

800g

Reaction time

8-25 minutes

Sample size

1 hole

Data storage

500 articles

Reaction tubes

DNase and RNase-free 1.5 mL centrifuge tubes

Reaction volume

75-100 μl

Temperature control range

5~85 ℃

Excitation wavelength

470-600 nm

Absorption wavelength

520-630 nm

Fluorescent detection dyes

FAM/SYBR Green l

Repeatability of fluorescence intensity detection

<5%

Detectors

High precision photon counters

Sensitivity of nucleic acid amplification assays

500 Copies/mL

*Contract manufacturer for Healgen Scientific Limited Liability Company
